Luxxor Video Systems LXX-VBSM

Any Hawkeye® Rigid or Flexible Borescope can be connected to a Luxxor® Video System, as can most other borescope brands as well. Video System users can easily view and document inspections, and store video or still images on a computer hard drive.

With components selected specifically to meet each individual visual assignment, Luxxor Video Systems can make long days of repetitive parts inspection faster, easier, more efficient, and much more comfortable for inspectors.

Luxxor® Video Systems contain:

• Sony® XC-505 Video Camera
• Luxxor® Video Coupler Lens
• Luxxor® 24 Light
• Luxxor® Light Guide
• Hawkeye® SuperKit Carrying Case



Luxxor® Video System Specifications
Sony® XC-505 Camera:
  CCD 1/3 inch
  Effective Pixels 768 X 494
  Video Resolution

525 lines, 2:1 interlace

  Frame Rate 30 frames/sec.
  Video Output NTSC  VBS or Y/C
  Lens Mount NF (C-Mount adapter included)
  White Balance Selectable. 5 Modes
  Shutter Speed Selectable, 1/60 - 1/1000 sec
  AGC Automatic Gain Control can be turned on/off
  Operating Temperature

0 to 40 deg C (32 to 104 F)

  Storage Temperature -30 to +60 deg C (-22 to +140 F)
  Dimensions 7/8 x 7/8 x 2 5/8 inches, (22mm H x 22 W x 64 D)
  Weight 1.8 oz. (51 gm)
Light Source 24 Watt Metal Halide Short Arc Lamp
Light Guide

2.5 m long, 4mm fiber bundle, with ACMI male light source end and ACMI female borescope end.  Exterior – polymer sheathing over stainless steel monocoil.

Video Coupler Lens Standard 25mm focal length.  Other focal lengths available upon request.
Video Cable Power/S-video output cable provided.
Luxxor Video Systems LXX-VBSM
Luxxor Video Systems LXX-VBSM
Luxxor Video Systems LXX-VBSM
Luxxor Video Systems LXX-VBSM
Luxxor Video Systems LXX-VBSM
เงื่อนไขอื่นๆ

Video Kits include Sony XC-505 Video Camera, a Luxxor 24 Light Source, Luxxor Light Guide, Luxxor Video Coupler Lens and the Hawkeye SuperKit storage case.

Kit with Sony XC-505 Video CameraLXX-VBSM

Components Available Separately

Sony XC-505 Video CameraXC-505

Luxxor Coupler LensVC-25

Luxxor 24 Light SourceLXX24

Luxxor Light GuideLXXLG

SuperKit CaseHSC

Monitors

Benchtop 15" LCD Video MonitorSVM-15

PC Video Capture

VidCap USB 2.0VC-USB2

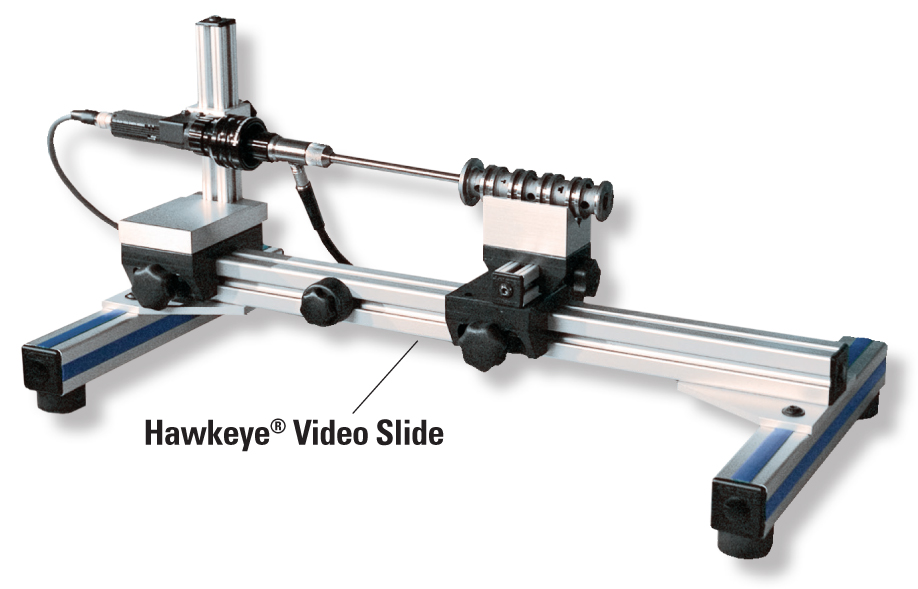

Hawkeye Video Slide

Horizontal - 24"HVSLIDE-24H

Horizontal - 48"HVSLIDE-48H
