Pro MicroSlim™ .073” (1.85 mm)
Hawkeye® Pro MicroSlim Borescopes are just .073 inches in diameter, or .084 inches with a mirror tube. Use them to inspect diesel fuel-injection nozzles miniature hydraulic components and much more.



Every Hawkeye® Pro Rigid Borescope is designed with professional users in mind. These top-of-the-line rigid borescopes deliver bright, clear, detailed, high-contrast images.

Hawkeye Pro Rigid Borescopes contain:

• Our latest endoGRINs®image relay lenses

• Multicoated objective lens

• LightConcentrator™ light post

• Independent focusing ring for convenient video and still photography



A Super bright, portable SuperNOVA™ Light, with rechargeable SuperNOVA Lithium-Ion batteries, and a rugged Hawkeye Carrying Case are included with Kit purchases.

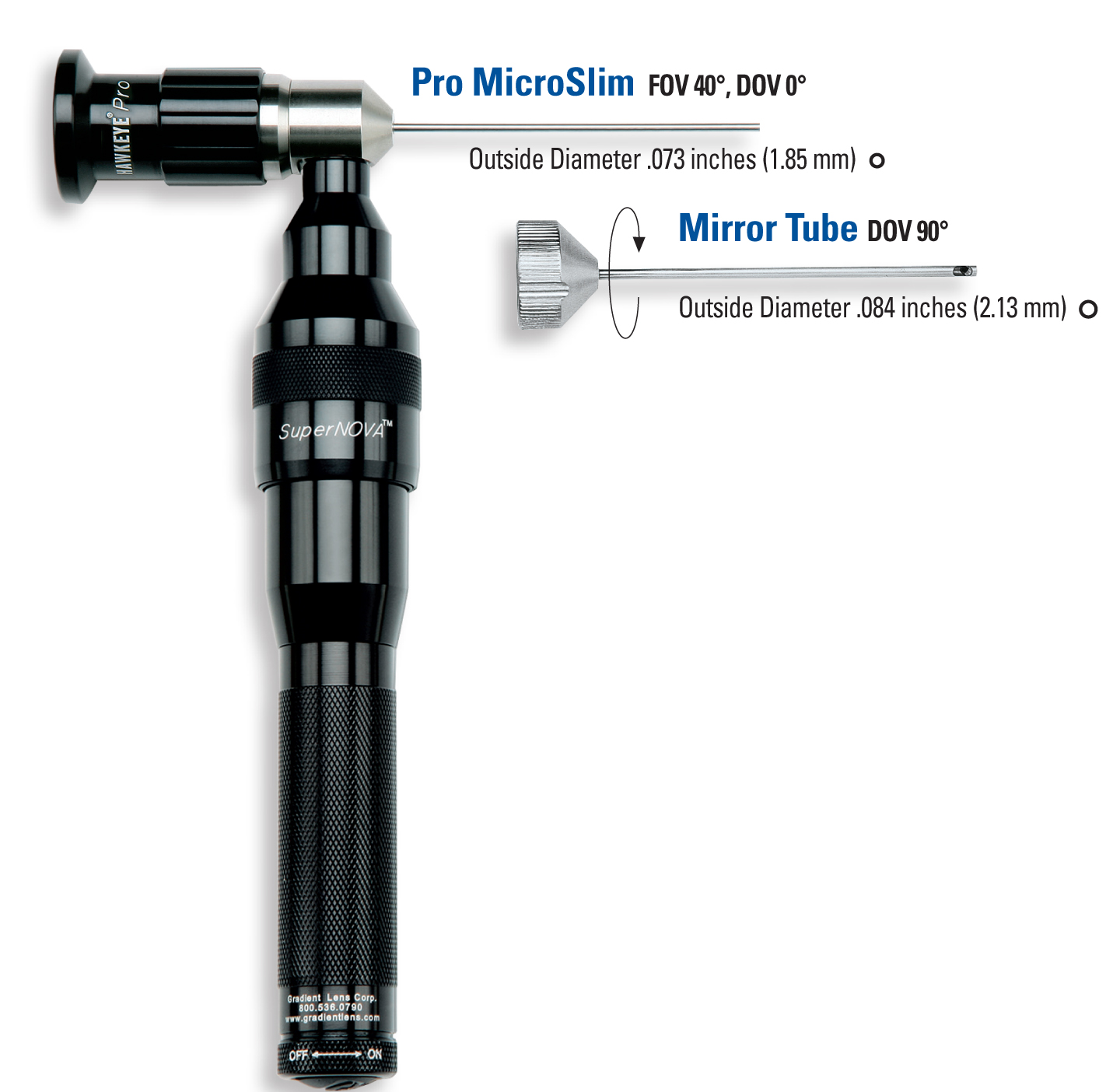

Each Hawkeye® Pro MicroSlim
Borescope Kit contains:



• Hawkeye® Pro MicroSlim Borescope

• Hawkeye® Mirror Tube

• Hawkeye® Shipping Sheath

• Hawkeye® SuperNOVA™ Light and Charger

• Rugged Hawkeye® Carrying Case

• Hawkeye® Cleaning Kit

Hawkeye® Pro MicroSlim Specifications
Optics:
  Field-of-View 42º
  Direction-of-View 0º
  Relay Optics e2 endoGRINs® Glass Relay Lenses
  Magnification Borescopes are not fixed magnification like microscopes. See chart.
Mechanical / Construction:
  Length 3", 5", 7"
  Diameter Scope: .073" (1.85 mm), w/ Mirror Tube: .084 (2.13 mm)
  Lightpost LightConcentrator™ ACMI configuration, Diameter 0.300"
  Eyecup Standard DIN, 32 mm diameter, with independent focusing ring
Materials:
  Tube 304 Stainless Steel
  All Machined Stainless Steel 303 Stainless Steel
  Eyecup and Focusing Ring Aluminum, black anodized
  Front Window AR coated optical Glass
  Illumination Fiber Optical Glass
  Relay Optics e2 endoGRINs® gradient index glass lenses
Environmental:
  Temperature Range Official - 20º to 120º C.
  Note 1 Hawkeye Pro Rigid Borescopes can be made to operate up to 300 deg. C on a custom Basis. Contact your sales representative for details.
  Note 2 These scope were not designed to operate below 0º. However, several of our customers have successfully used the scopes in liquid Nitrogen at 77 deg. K.
  Pressure All Hawkeye borescopes we designed only for use at ambient pressure, however,  we have several customers who have successfully used Hawkeye Borescopes at pressures up to 500 PSI and down to 10-6 Torr.  As the scopes were not specifically designed for this, the operator does so at his own risk.
  Chemical Resistance All Hawkeye Pro Rigid borescopes (tube only, not the eyepiece end) are water tight and are resistant to most hydrocarbons; oils, gasoline, hydraulic fluid, jet fuel, etc.  Exposure to Acids and strong Alkali should be avoided as it will attack the optical window.
Hawkeye Pro MicroSlim Borescopes
Hawkeye Pro MicroSlim Borescopes
เงื่อนไขอื่นๆ

Pro MicroSlim Kits

3" Pro MicroSlim Kit (80 mm)3" (80 mm)MS03-NVK

5" Pro MicroSlim Kit (120 mm)5" (120 mm)MS05-NVK

7" Pro MicroSlim Kit (180 mm)7" (180 mm)MS07-NVK

Pro MicroSlim Components

3" Pro MicroSlim Borescope3" (80 mm)MS03

5" Pro MicroSlim Borescope5" (120 mm)MS05

7" Pro MicroSlim Borescope7" (180 mm)MS07

3" Pro MicroSlim Mirror Tube3" (80 mm)MTMS03

5" Pro MicroSlim Mirror Tube5" (120 mm)MTMS05

7" Pro MicroSlim Mirror Tube7" (180 mm)MTMS07
